Customizing the appearance of the execution node

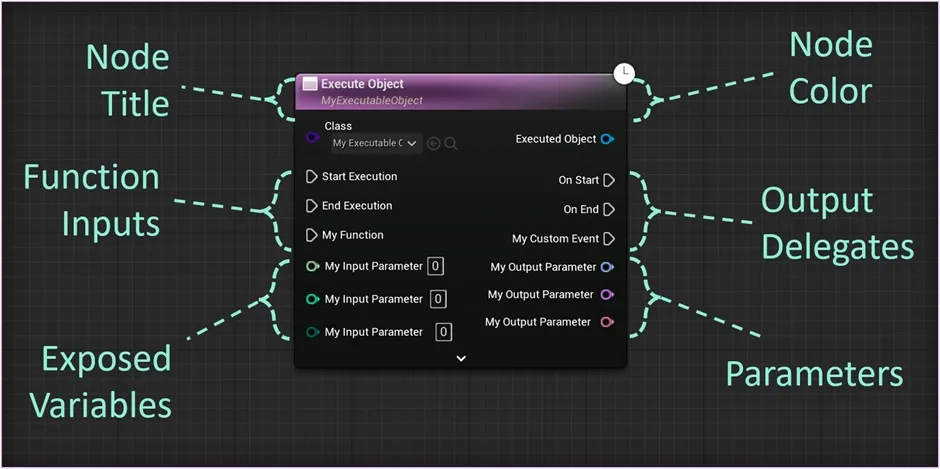

You can change the appearance of the Execute Object node in several ways. This article provides an overview of the different ways to do so.

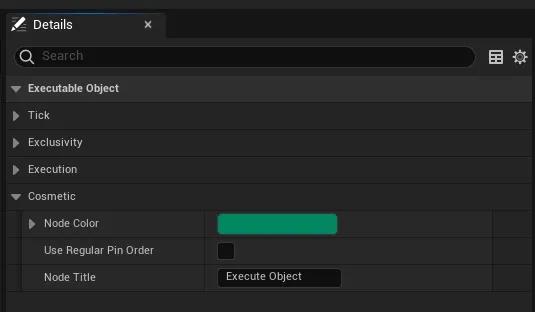

You can find the settings related to the appearance of the node in the class defaults of your Executable Objects, in the Cosmetic category.

Node color

You can change the color of the node using the Color variable, located in the cosmetic category of your Executable Object.

Pin order

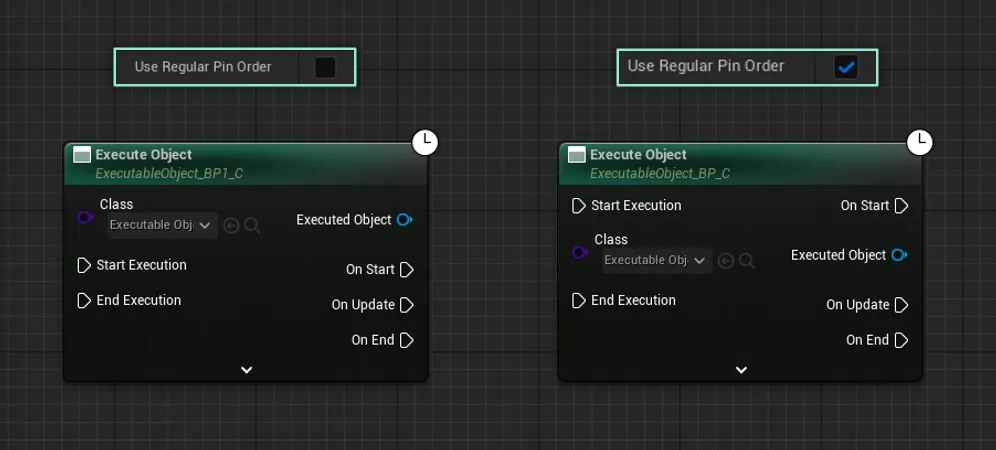

Enabling the Use Regular Pin Order setting will make the node look more like a typical Construct Object From Class node, by keeping the execution pins on the top of the node.

Node title

You can change the text on the header of the node in two ways:

• A first way, is by changing the Node Title variable. This will change only the first line of the title, and keep the class of the object mentioned on a second line.

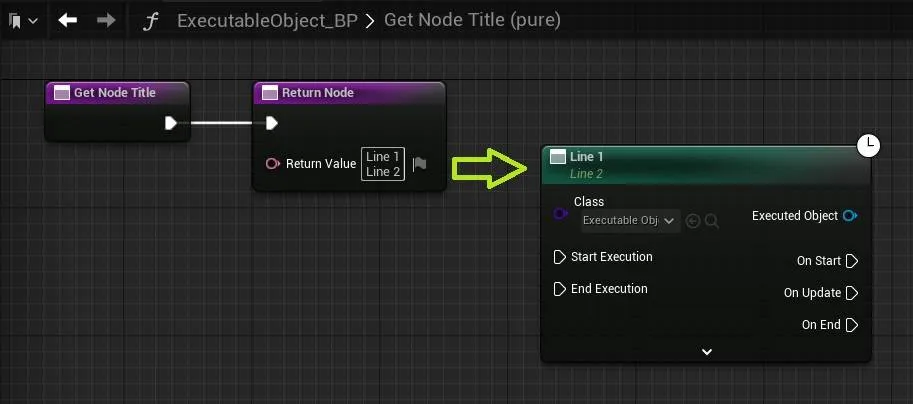

• You can also override the Get Node Title function. This gives you full control over the title. You can use [Shift+Enter] to add a new line to the text. Any lines below the first one, will show up with special formatting.
